tinyPortMapper端口转发映射

系统：Windows

下载地址：tinyPortMapper端口转发映射

点评：软件单个运行速度快，不支持域名解析，只支持IP地址

项目地址：https://github.com/wangyu-/tinyPortMapper

项目下载地址：https://github.com/wangyu-/tinyPortMapper/releases

使用方式： -本地IP:端口 -r远程IP:端口 -t -u

# for both TCP and UDP

./tinymapper_amd64 -l0.0.0.0:1234 -r10.222.2.1:443 -t -u

# for TCP only

./tinymapper_amd64 -l0.0.0.0:1234 -r10.222.2.1:443 -t

# for UDP only

./tinymapper_amd64 -l0.0.0.0:1234 -r10.222.2.1:443 -u

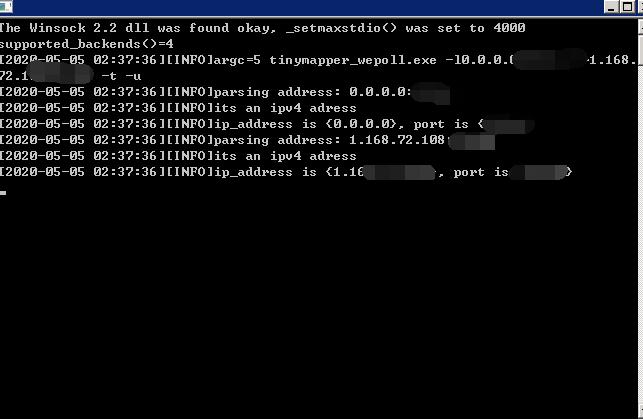

开始.bat

列子：start "" "tinymapper_wepoll.exe" -l0.0.0.0:333 -r1.168.72.108:2300 -t -u

tinyPortMapper (or tinyPortForwarder)

A Lightweight High-Performance Port Mapping/Forwarding Utility using epoll, Supports both TCP and UDP

Supported Platforms

Linux host (including desktop Linux,Android phone/tablet, OpenWRT router, or Raspberry PI). Binaries of amd64 x86 mips_bemips_le arm are provided.

Getting Started

Installing

Download binary release from https://github.com/wangyu-/tinyPortMapper/releases

Running

Assume you want to map/forward local port 1234 to 10.222.2.1:443

# for both TCP and UDP  ./tinymapper_amd64 -l0.0.0.0:1234 -r10.222.2.1:443 -t -u    # for TCP only  ./tinymapper_amd64 -l0.0.0.0:1234 -r10.222.2.1:443 -t    # for UDP only  ./tinymapper_amd64 -l0.0.0.0:1234 -r10.222.2.1:443 -u    # for ipv6, both TCP and UDP  # ipv6 address must be surrounded with `[]`, ipv4 address must NOT be surrounded with `[]`  ./tinymapper_amd64 -l[::]:1234 -r[2001:19f0:7001:1111:00:ff:11:22]:443 -t -u

NOTE

# local port and remote port can be the same  ./tinymapper_amd64 -l0.0.0.0:443 -r10.222.2.1:443 -u    # you can also use 6-to-4 or 4-to-6 forward  ./tinymapper_amd64 -l0.0.0.0:1234 -r[2001:19f0:7001:1111:00:ff:11:22]:443 -t -u  ./tinymapper_amd64 -l[::]:1234 -r44.55.66.77:443 -t -u    # you can also use ipv4-mapped ipv6 address  # this is especially useful if you want to play with ipv6 and you dont have a real ipv6 address  ./tinymapper_amd64 -l[::]:4433 -r[::ffff:10.222.2.1]:443 -t -u  ./tinymapper_amd64 -l[::ffff:0.0.0.0]:4433 -r[::ffff:10.222.2.1]:443 -t -u

Options

tinyPortMapper  git version:25ea4ec047    build date:Nov  4 2017 22:55:23  repository: https://github.com/wangyu-/tinyPortMapper    usage:      ./this_program  -l <listen_ip>:<listen_port> -r <remote_ip>:<remote_port>  [options]    main options:      -t                                    enable TCP forwarding/mapping      -u                                    enable UDP forwarding/mapping    other options:      --sock-buf            <number>        buf size for socket, >=10 and <=10240, unit: kbyte, default: 1024      --log-level           <number>        0: never    1: fatal   2: error   3: warn                                            4: info (default)      5: debug   6: trace      --log-position                        enable file name, function name, line number in log      --disable-color                       disable log color      -h,--help                             print this help message

Peformance Test

root@debian9:~# iperf3 -c 127.0.0.1 -p5202  Connecting to host 127.0.0.1, port 5202  [  4] local 127.0.0.1 port 37604 connected to 127.0.0.1 port 5202  [ ID] Interval           Transfer     Bandwidth       Retr  Cwnd  [  4]   0.00-1.00   sec   696 MBytes  5.84 Gbits/sec    0    639 KBytes  [  4]   1.00-2.00   sec   854 MBytes  7.17 Gbits/sec    0    639 KBytes  [  4]   2.00-3.00   sec   727 MBytes  6.10 Gbits/sec    0    639 KBytes  [  4]   3.00-4.00   sec   670 MBytes  5.62 Gbits/sec    0    639 KBytes  [  4]   4.00-5.00   sec   644 MBytes  5.40 Gbits/sec    0    639 KBytes  [  4]   5.00-6.00   sec   957 MBytes  8.03 Gbits/sec    0    639 KBytes  [  4]   6.00-7.00   sec   738 MBytes  6.19 Gbits/sec    0    639 KBytes  [  4]   7.00-8.00   sec   714 MBytes  5.99 Gbits/sec    0    639 KBytes  [  4]   8.00-9.00   sec   817 MBytes  6.85 Gbits/sec    0    639 KBytes  [  4]   9.00-10.00  sec   619 MBytes  5.19 Gbits/sec    0    639 KBytes  - - - - - - - - - - - - - - - - - - - - - - - - -  [ ID] Interval           Transfer     Bandwidth       Retr  [  4]   0.00-10.00  sec  7.26 GBytes  6.24 Gbits/sec    0             sender  [  4]   0.00-10.00  sec  7.26 GBytes  6.24 Gbits/sec                  receiver

Details and more test results at:

https://github.com/wangyu-/tinyPortMapper/wiki/Performance-Test
